Transducer Fairings - GARMIN - (GT51M & GT56UHD)

GARMIN Transducer Fairings - GT51M & GT56UHD - image 5

GARMIN Transducer Fairings - GT51M & GT56UHD - image 2

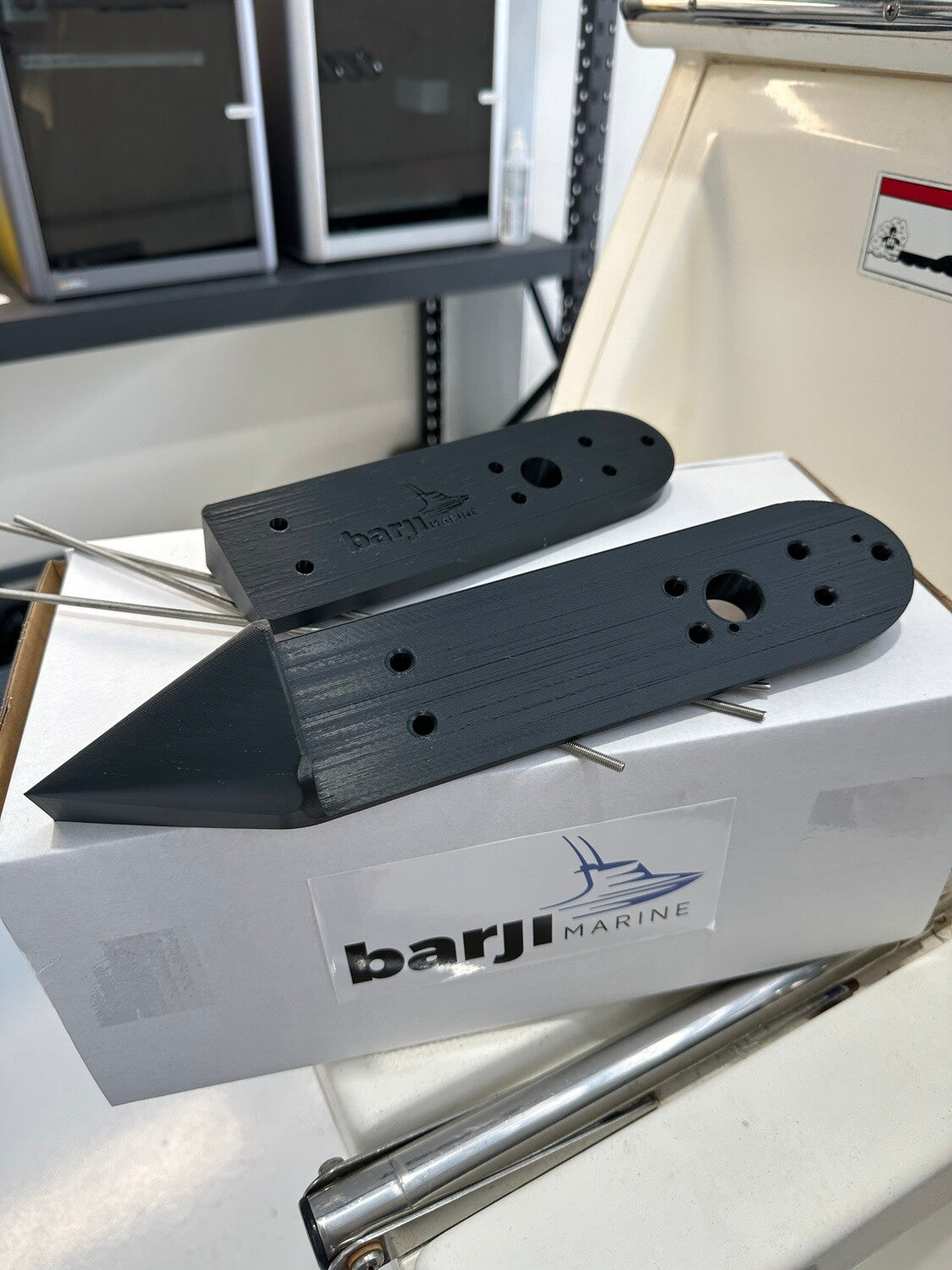

GARMIN Transducer Fairings - GT51M & GT56UHD - image 3

GARMIN Transducer Fairings - GT51M & GT56UHD - image 4

ProTek Series

Transducer Fairings - GARMIN - (GT51M & GT56UHD)

Name: Transducer Fairings - GARMIN - (GT51M & GT56UHD)
Brand: ProTek - Barji Marine
SKU: 39
Price: 75.00 AUD
Availability: InStock

$75.00 AUD

In stock

Shipping

Please note - we ship Mondays, Wednesdays and Fridays, with a cut-off time of 12pm.

Transducer Fairings - GARMIN - (GT51M & GT56UHD)

Standard transducer mounts create a square trailing edge that disrupts water flow — producing turbulent, aerated water that causes propeller cavitation, handling issues, fuel economy losses, and in some cases engine overheating. The PROTEK High-Speed Fairing Block eliminates the problem at the source.

Custom-engineered and manufactured for Garmin scanning transducers, the fairing delivers three major benefits to boat builders, installers and owners:

1. Cavitation elimination. The shaped trailing edge keeps water flowing cleanly past the transducer — no turbulence, no aerated water, no cavitation downstream. Say goodbye to handling issues, fuel economy concerns and potential engine overheating.

2. Simplified through-hull installation. The fairing fits seamlessly between the hull and the transducer mounting plate, providing a secure and efficient setup without compromising performance.

3. Convert transom-mounted to through-hull. Transom-mounted scanning transducers commonly suffer from outboard "shadowing," interference from water pickups, and excessive spray. Mounting through the hull delivers the best possible scanning sonar performance — and dramatically improved sounding at speed.

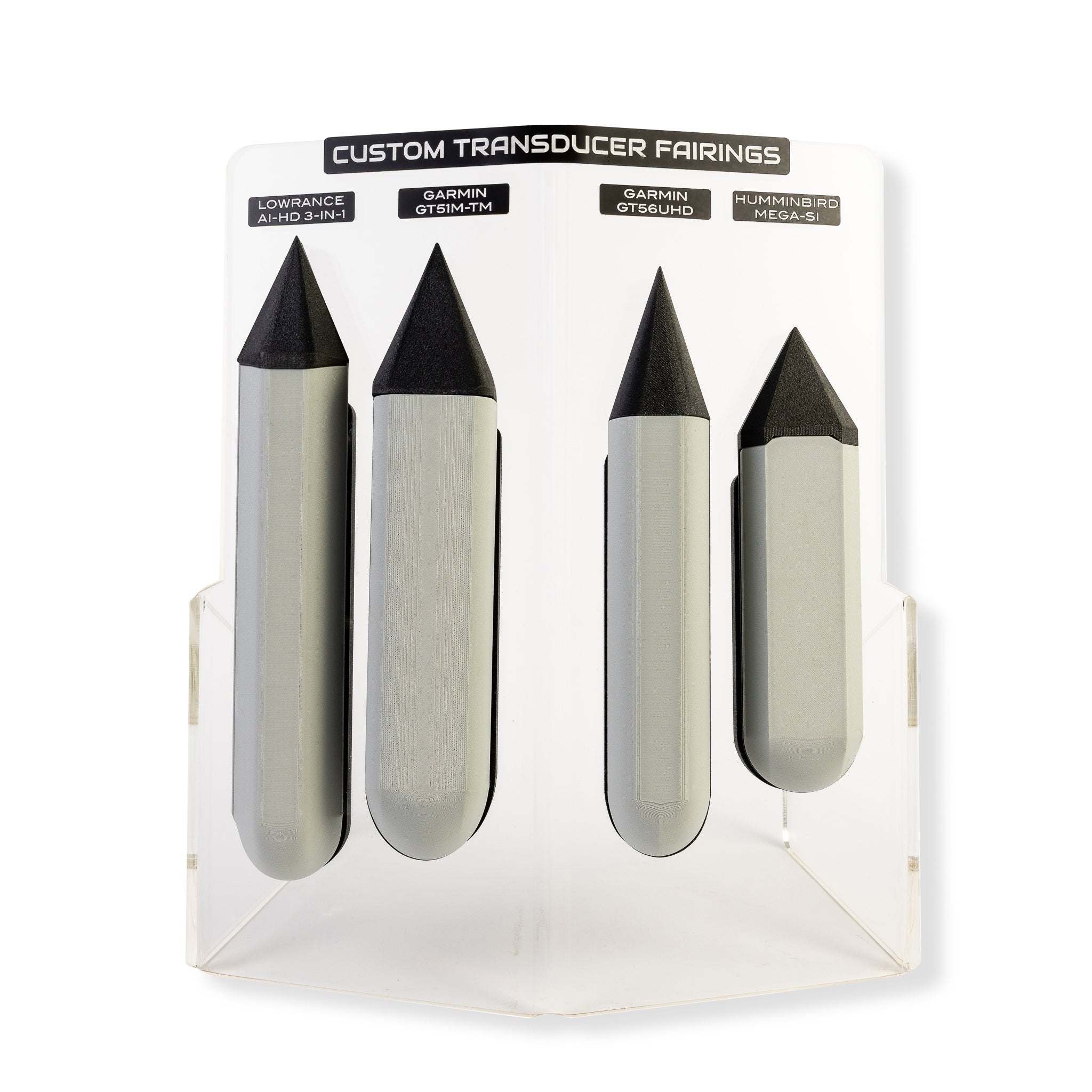

Four models available

Select your model from the dropdown menu to match your exact Garmin transducer:

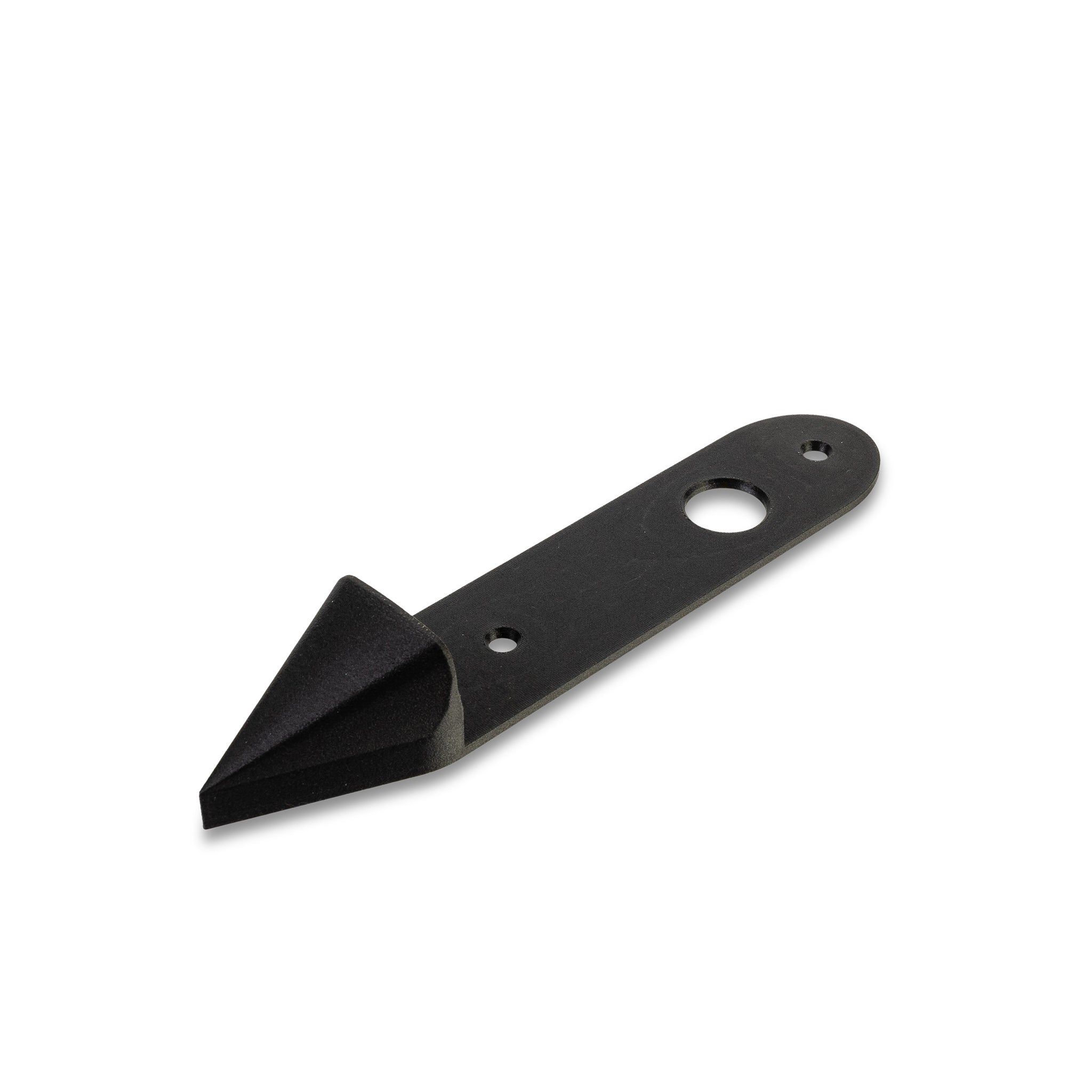

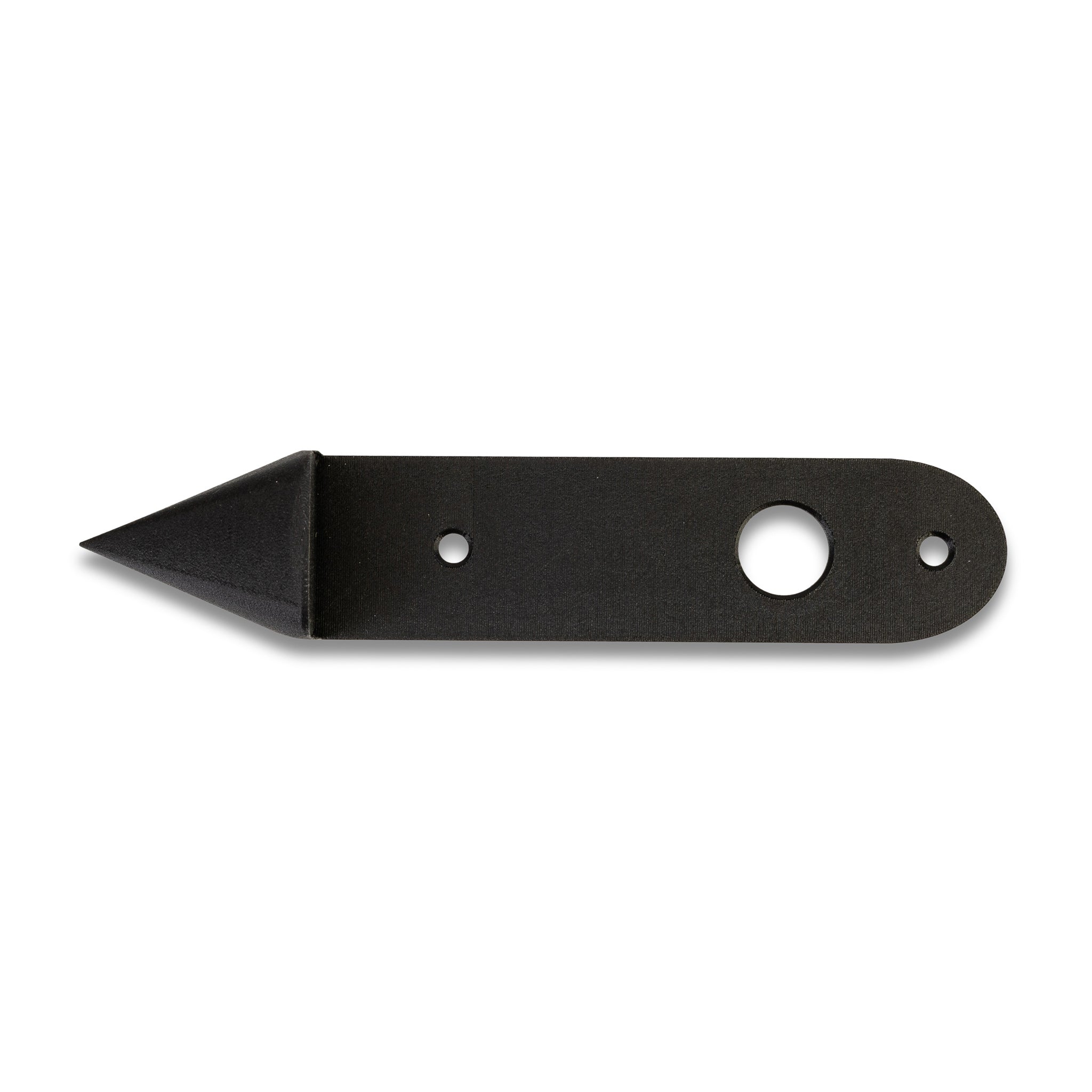

Model 1 — For the Garmin GT51M-TH (P/N 010-01966-10) & GT23M-TH (P/N 010-12404-10) through-hull transducers.

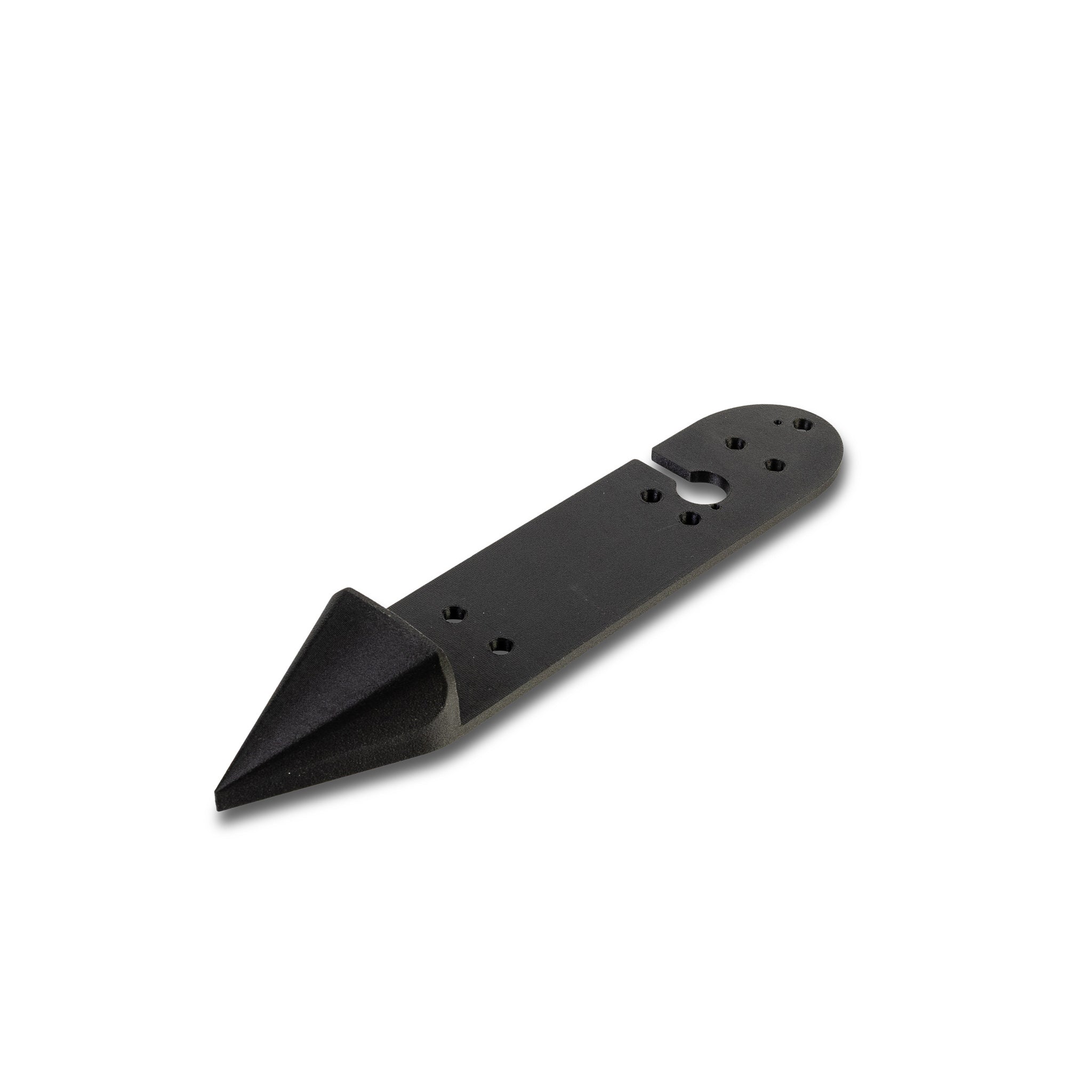

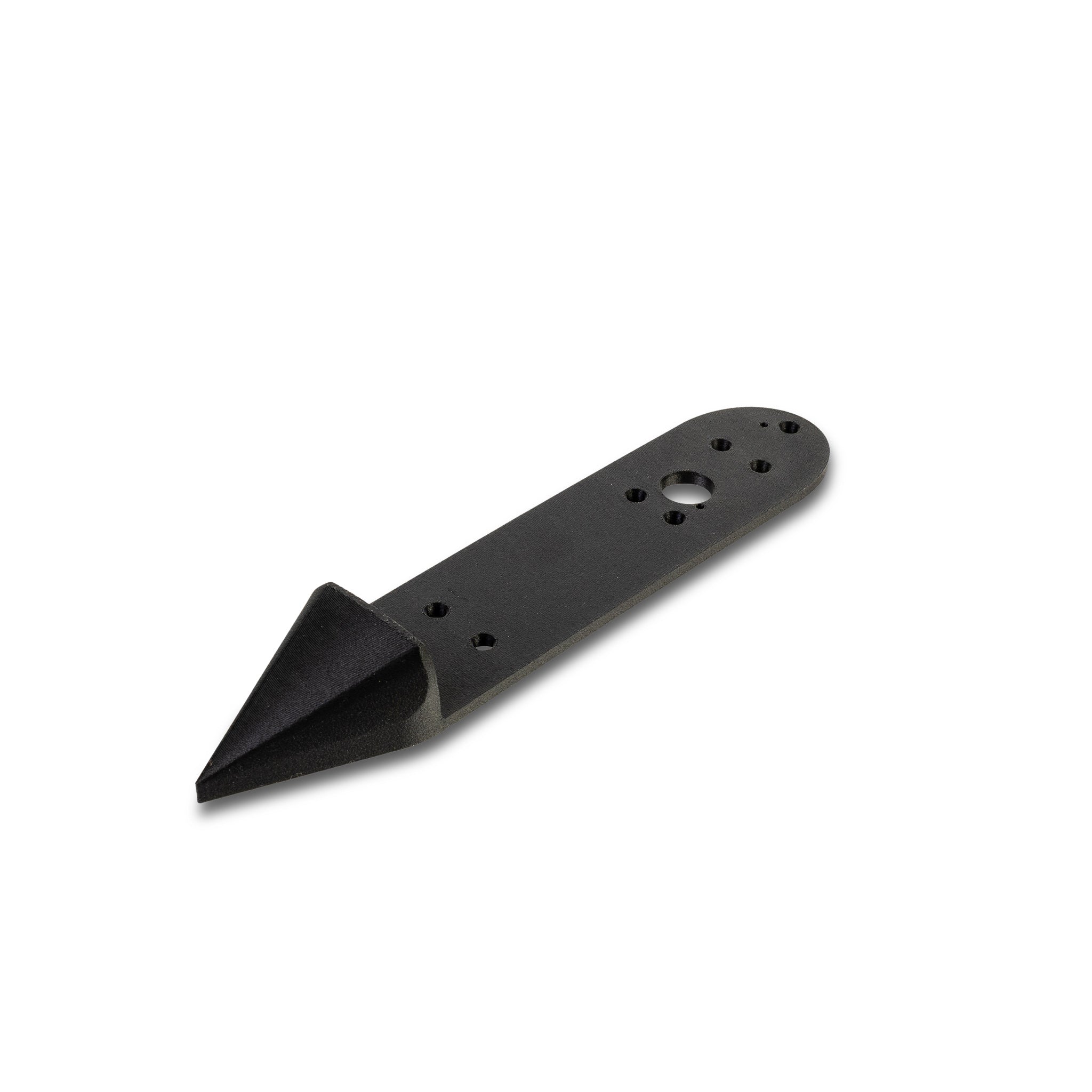

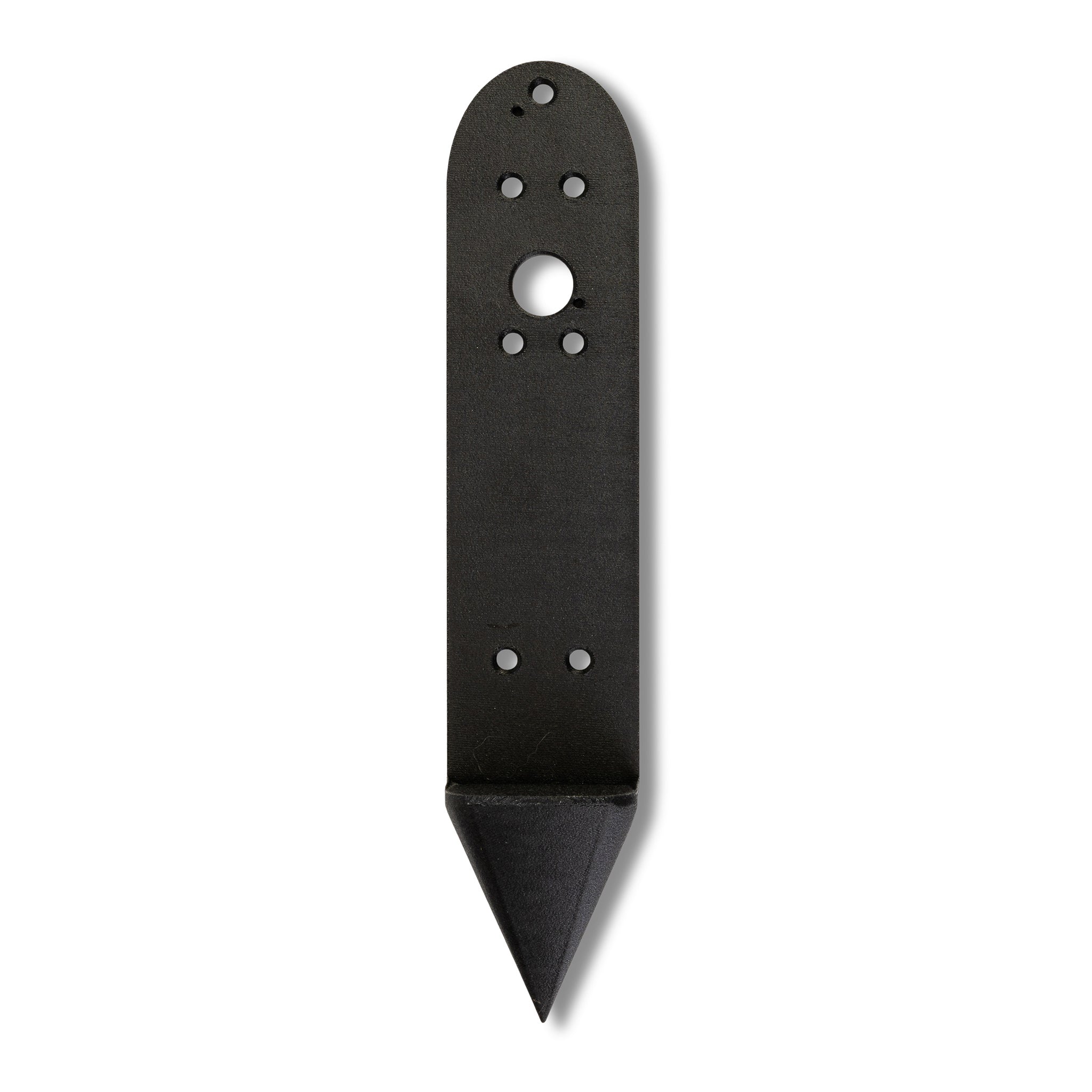

Model 2 — Engineered to install the GT51M-TM (P/N 010-01966-00) & GT23M-TM (P/N 010-12404-00) transom-mount units in a through-hull configuration, while retaining our teardrop fairing design. Uses the factory mounting screw and location pin positions.

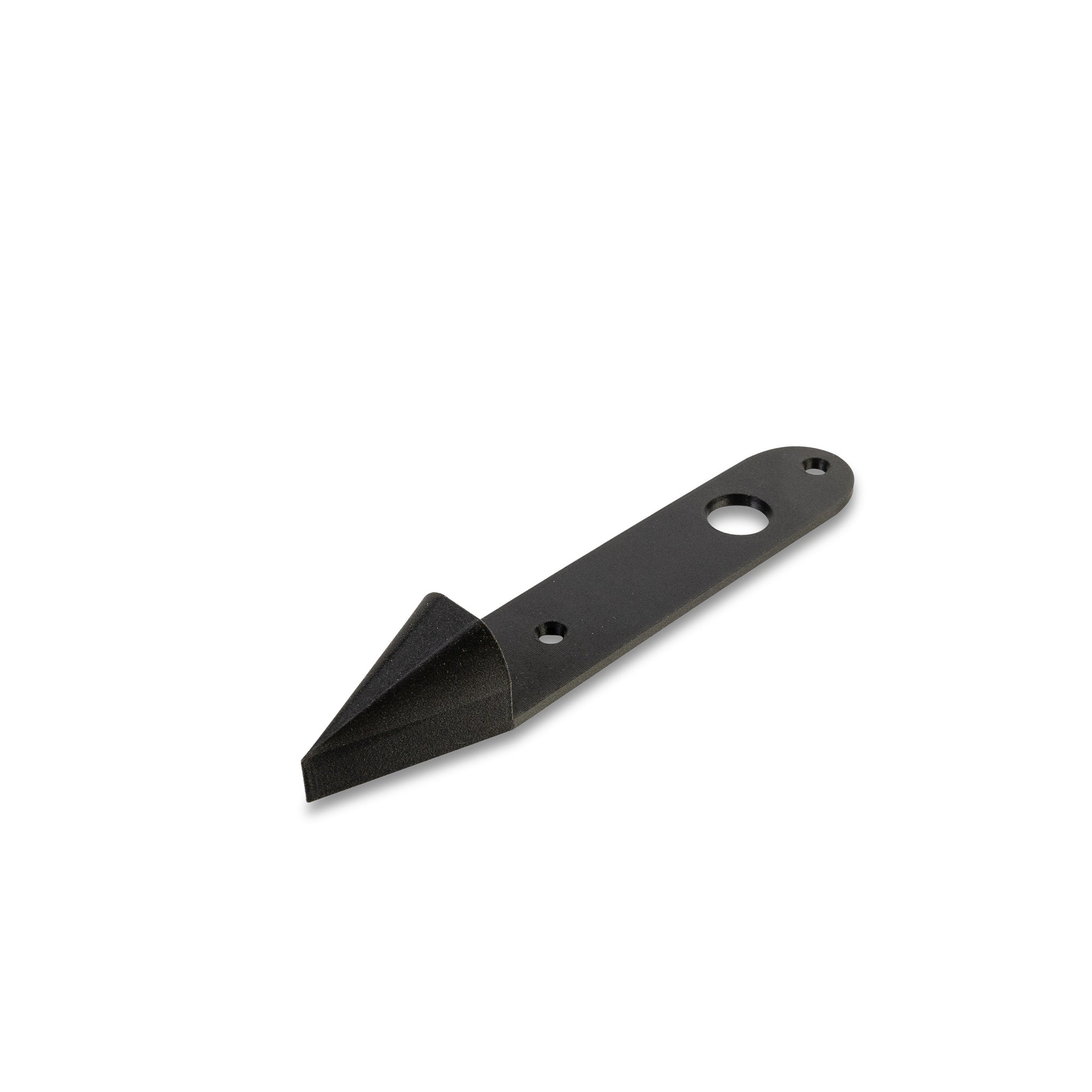

Model 3 — For the Garmin GT56UHD-TH (P/N 010-02732-10) through-hull transducers.

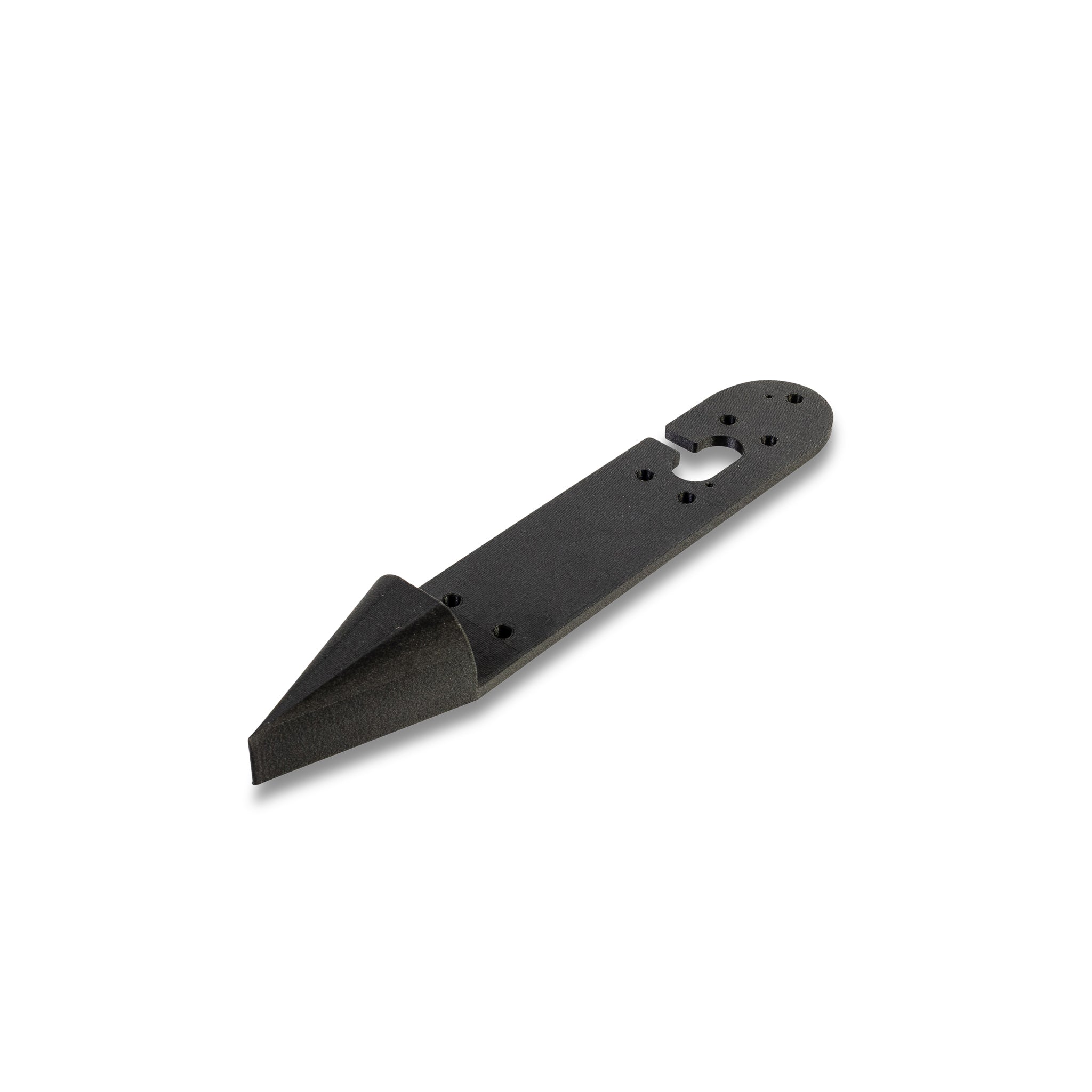

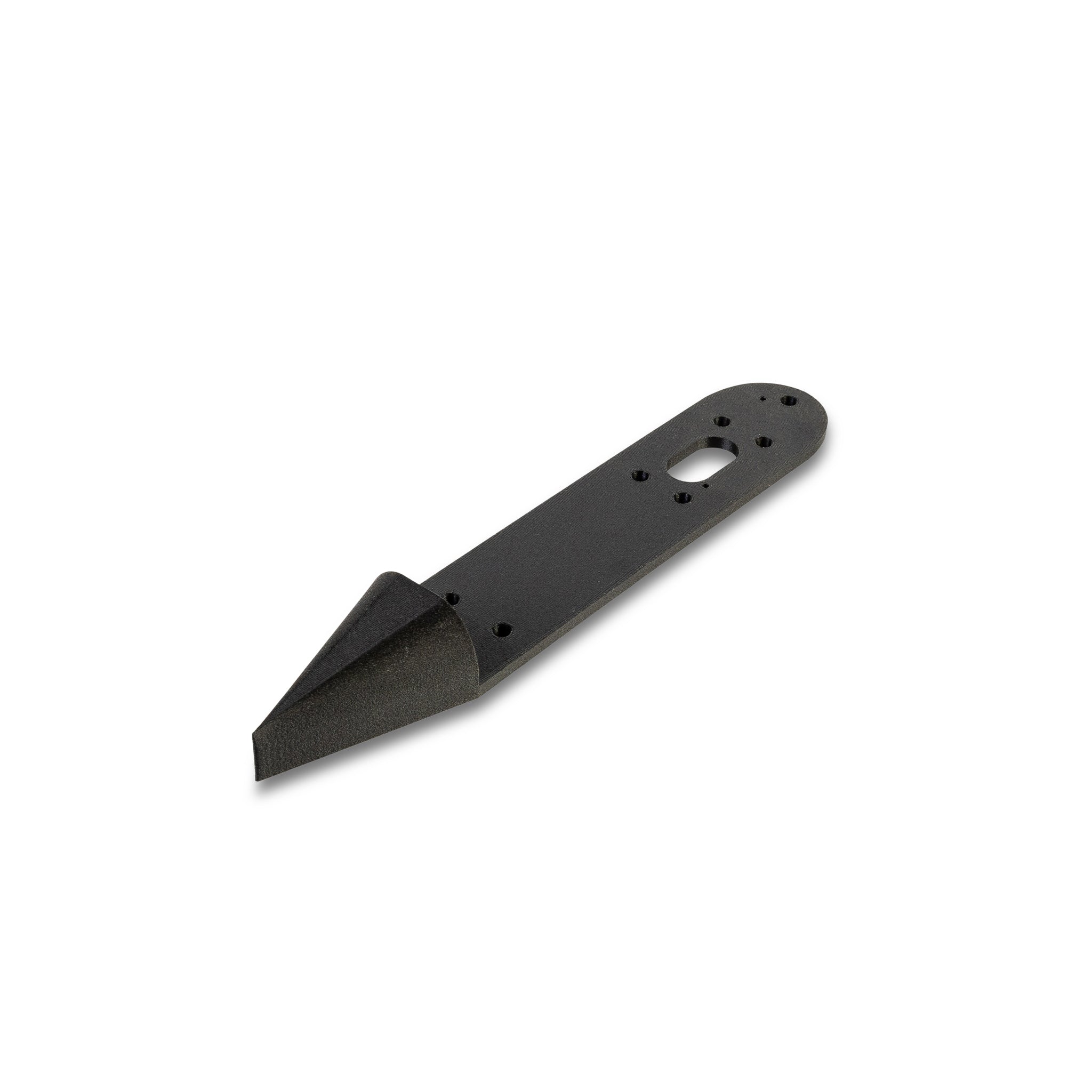

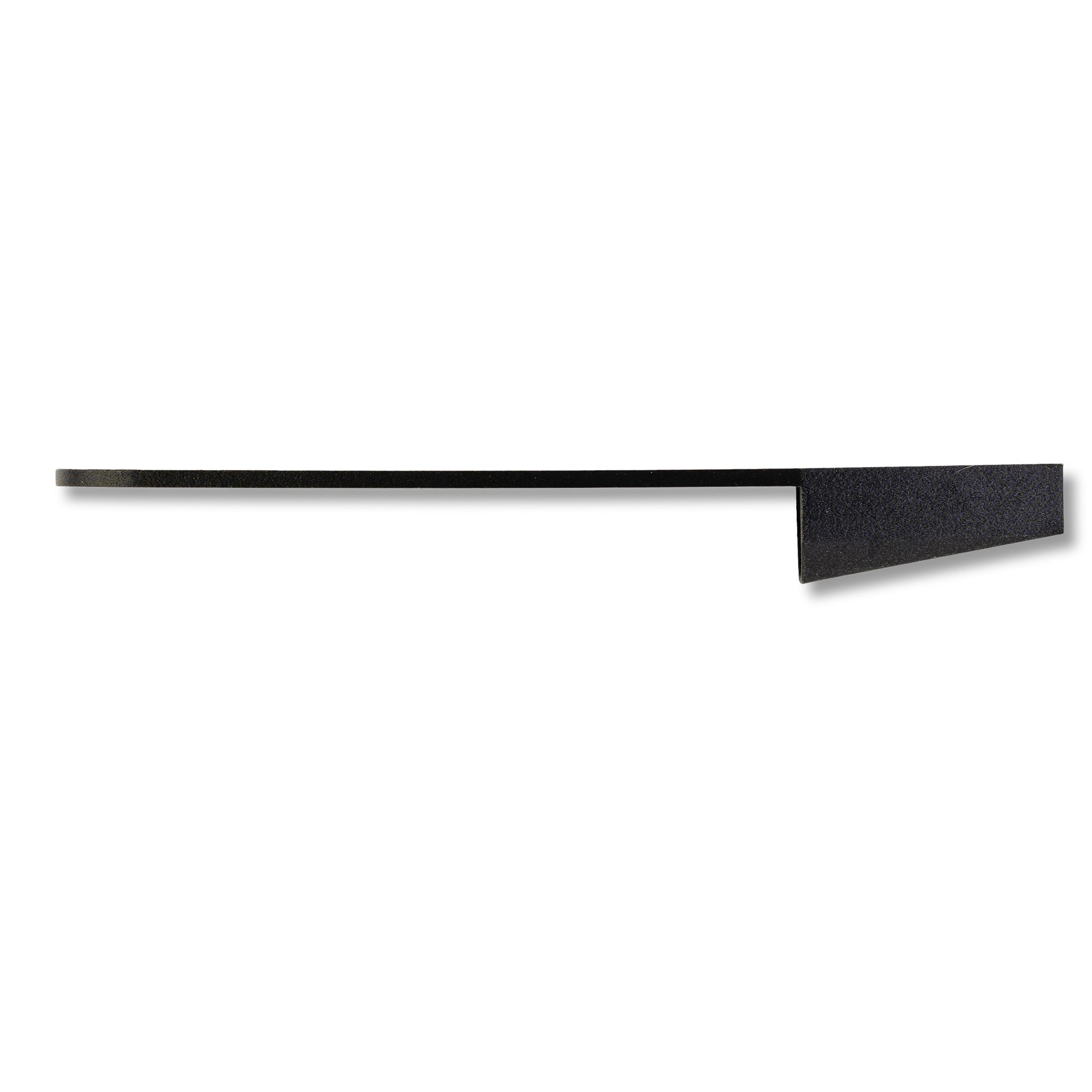

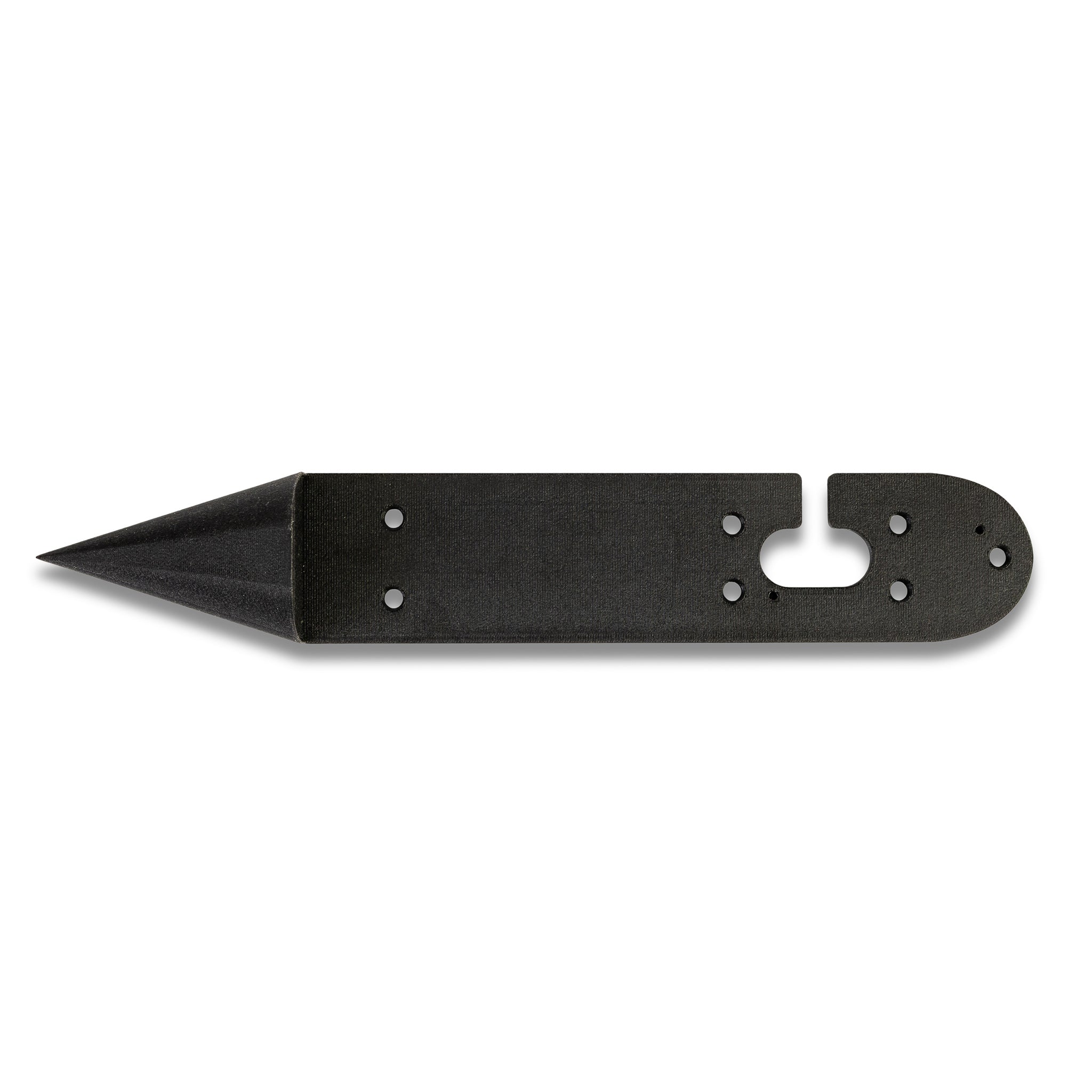

Model 4 — Engineered to install the GT56UHD-TM (P/N 010-13073-00) transom-mount unit in a through-hull configuration, while retaining our teardrop fairing design. Uses the factory mounting screw and location pin positions.

Disclaimer: Barji Marine takes no responsibility for the installation of transducers in a fashion not originally intended by the manufacturer.

Why ProTek?

Engineered to eliminate cavitation. Shaped trailing edge keeps water flowing cleanly past the transducer — no turbulence, no handling loss, no fuel economy hit.

A model for every Garmin transducer. Four configurations covering GT51M, GT23M and GT56UHD in both through-hull and transom-mount versions — matched to factory screw and pin positions.

Custom mounting to suit any hull. Tailored to your deadrise, keel shape, or specific install requirement — not a one-size-fits-all part.

Built to take a hit. 3D printed in impact-resistant, engineering-grade material — designed for the underside of a boat at speed.

Upgrade Your Setup Today

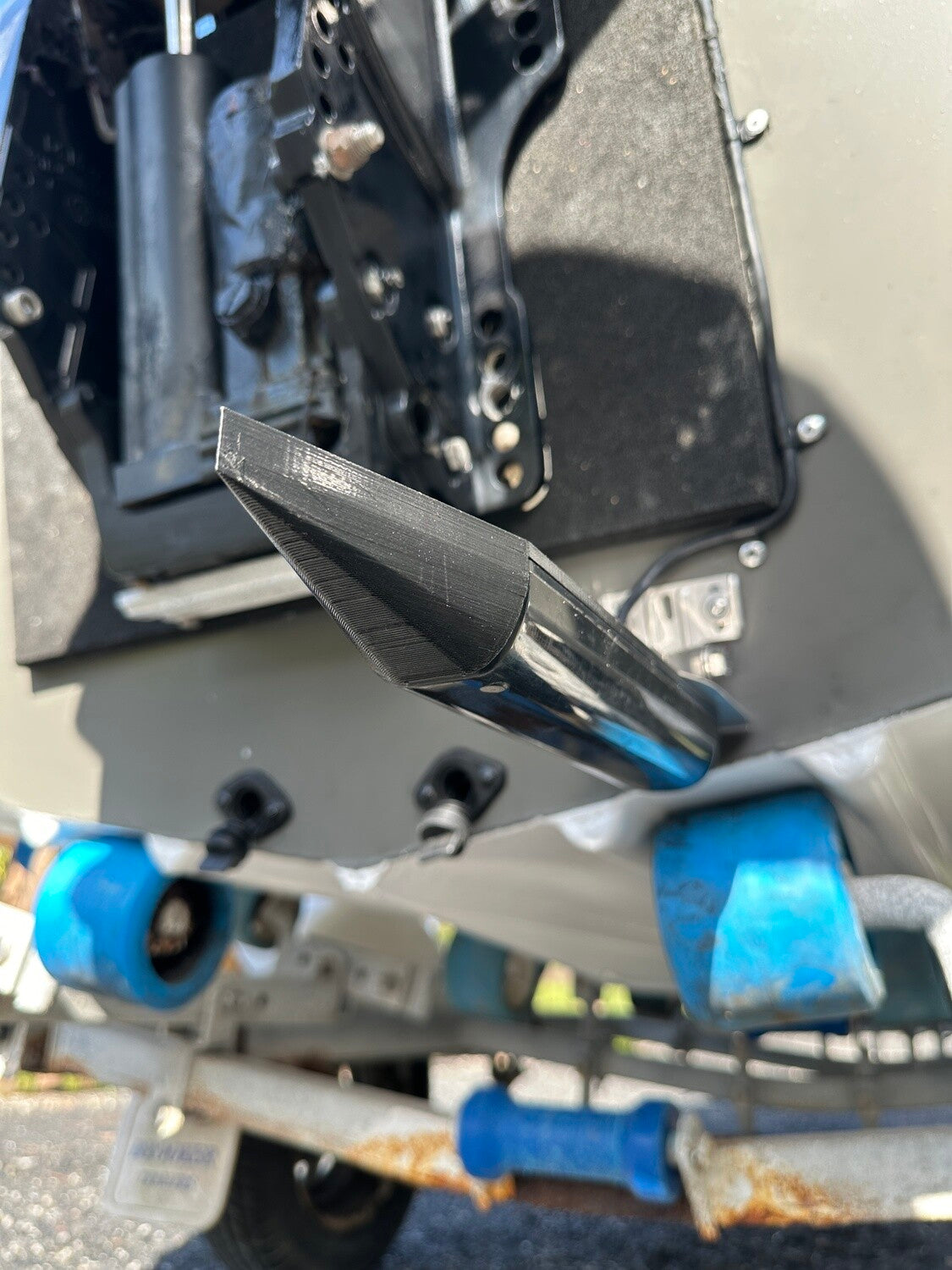

Watch it installed on our Weekly Workshop Walkthrough series — head to our YouTube channel for the full episode.

Key Details

Compatibility: Garmin GT51M, GT23M and GT56UHD scanning transducers (through-hull and transom-mount versions)

Models: 4 — select to match your transducer part number

Installation: Through-hull

Material: Impact-resistant, engineering-grade 3D printed plastic

Design: Teardrop fairing profile

Custom mounting: Available for specific deadrise and keel configurations

Deadrise limit: Max 5° from transducer face to lowest section of hull / keel

Made in: Australia, by Barji Marine

Custom mounting to suit your hull

Every boat is unique. We offer custom mounting options to suit specific install requirements — whether you need the fairing block integrated into the deadrise of the hull, or shaped to suit a hull with a rounded keel.

Each fairing is 3D printed using state-of-the-art equipment and high-quality, impact-resistant engineering-grade materials. Built to last in an unforgiving environment.

Important: deadrise constraint

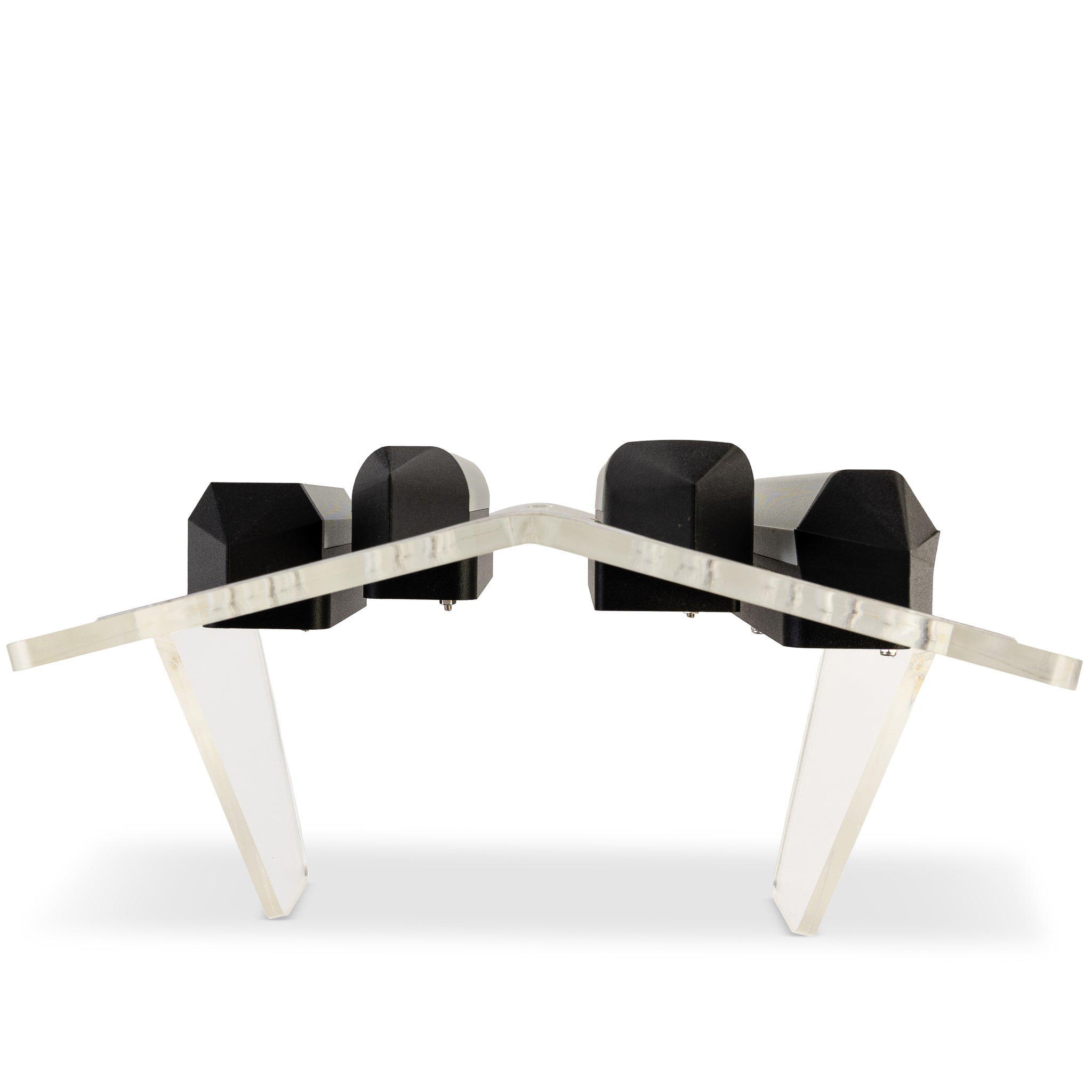

Fairings mounted to port or starboard deadrise must not exceed 5° from the bottom of the transducer face to the lowest section of hull or keel. See the illustration on this page for reference.

If your install requires an extra-deep fairing to overcome this constraint, contact us — we'll build one to suit.

Need a custom build?

Get in touch with the Barji Marine team with your hull details, deadrise angle, and transducer model. We'll work out the right configuration and quote it back to you.
