ProTek Series

Garmin PS70 Insulator Sleeve

Name: Garmin PS70 Insulator Sleeve
Brand: ProTek - Barji Marine
SKU: 66
Price: 189.00 AUD
Availability: InStock

$189.00 AUD

A precision-engineered ABS insulator sleeve that prevents galvanic corrosion between the stainless steel Garmin PS70 transducer and an aluminium faring block. Two-piece design with a 2mm sealing gap for a watertight, long-lasting install.

Quantity:

In stock

Shipping

Please note - we ship Mondays, Wednesdays and Fridays, with a cut-off time of 12pm.

Garmin PS70 Insulator Sleeve

When installing the stainless steel Garmin PS70 through-hull transducer into an aluminum faring, galvanic corrosion is a serious concern. Two dissimilar metals in constant contact, in a marine environment, will eventually break each other down — damaging both the transducer and the faring block.

The PROTEK PS70 Transducer Insulator Sleeve is the fix. A precision-engineered barrier that fully encapsulates the top and sides of the PS70, eliminating direct contact between the stainless steel and the aluminum and stopping galvanic corrosion at the source.

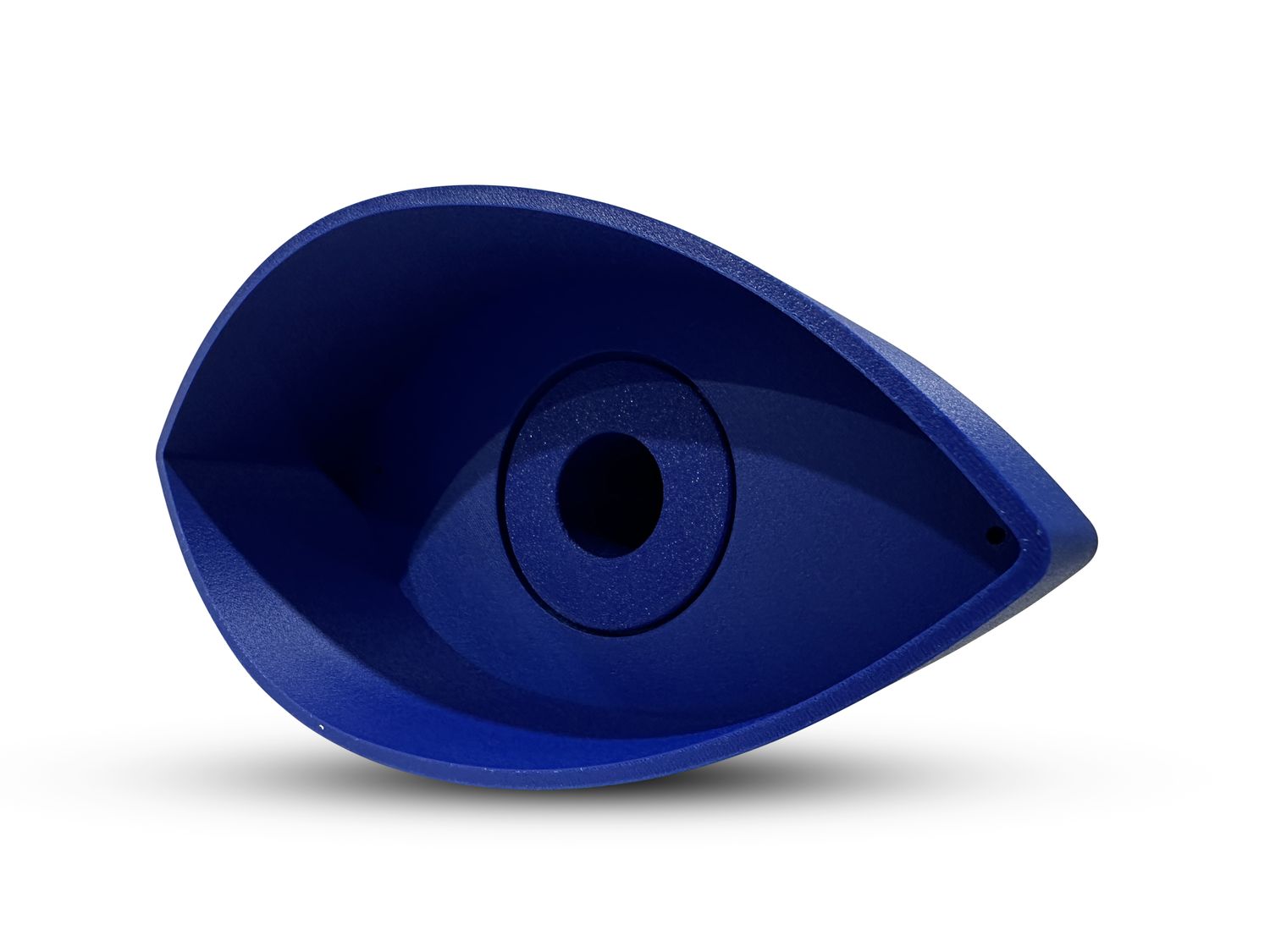

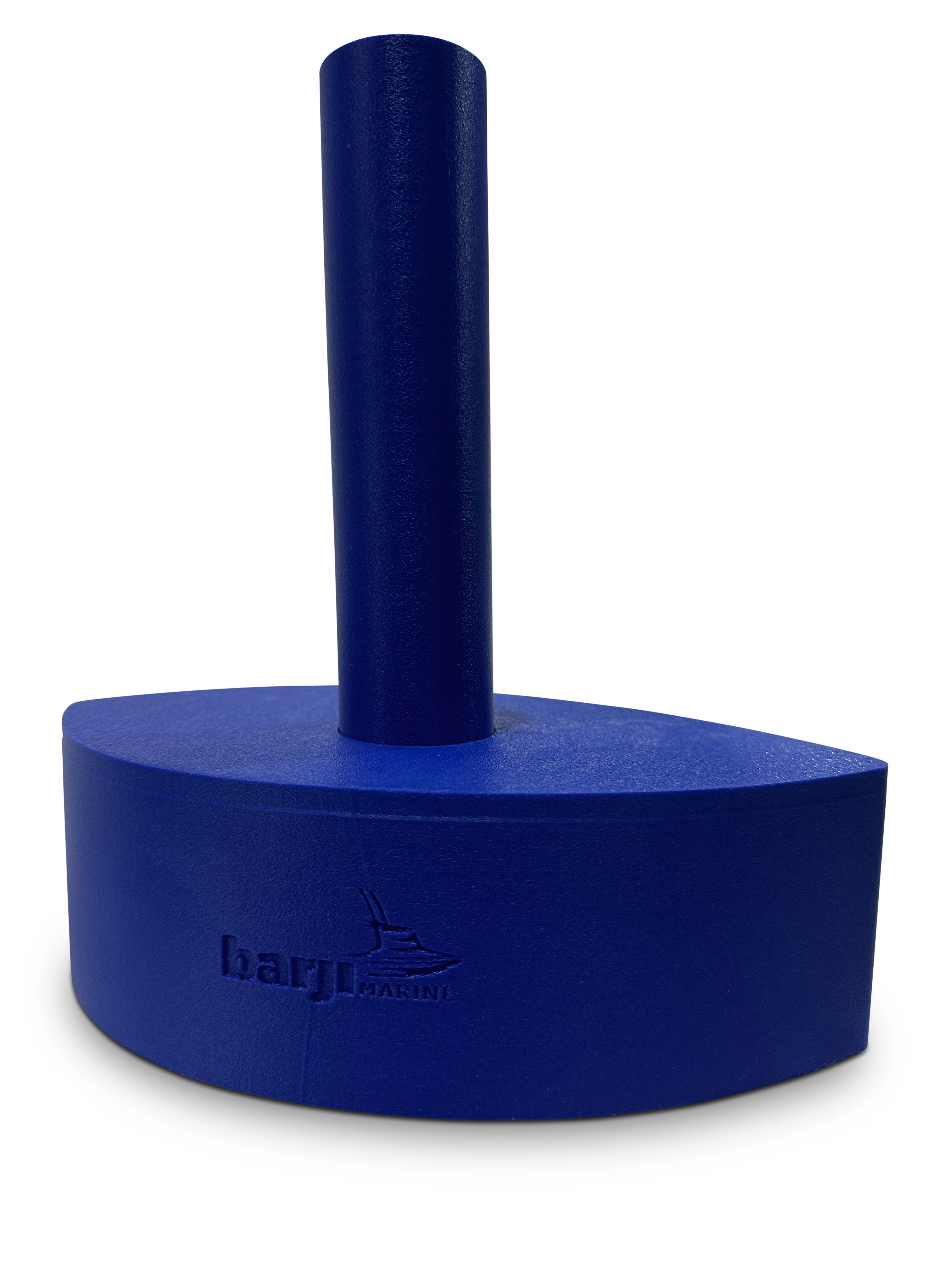

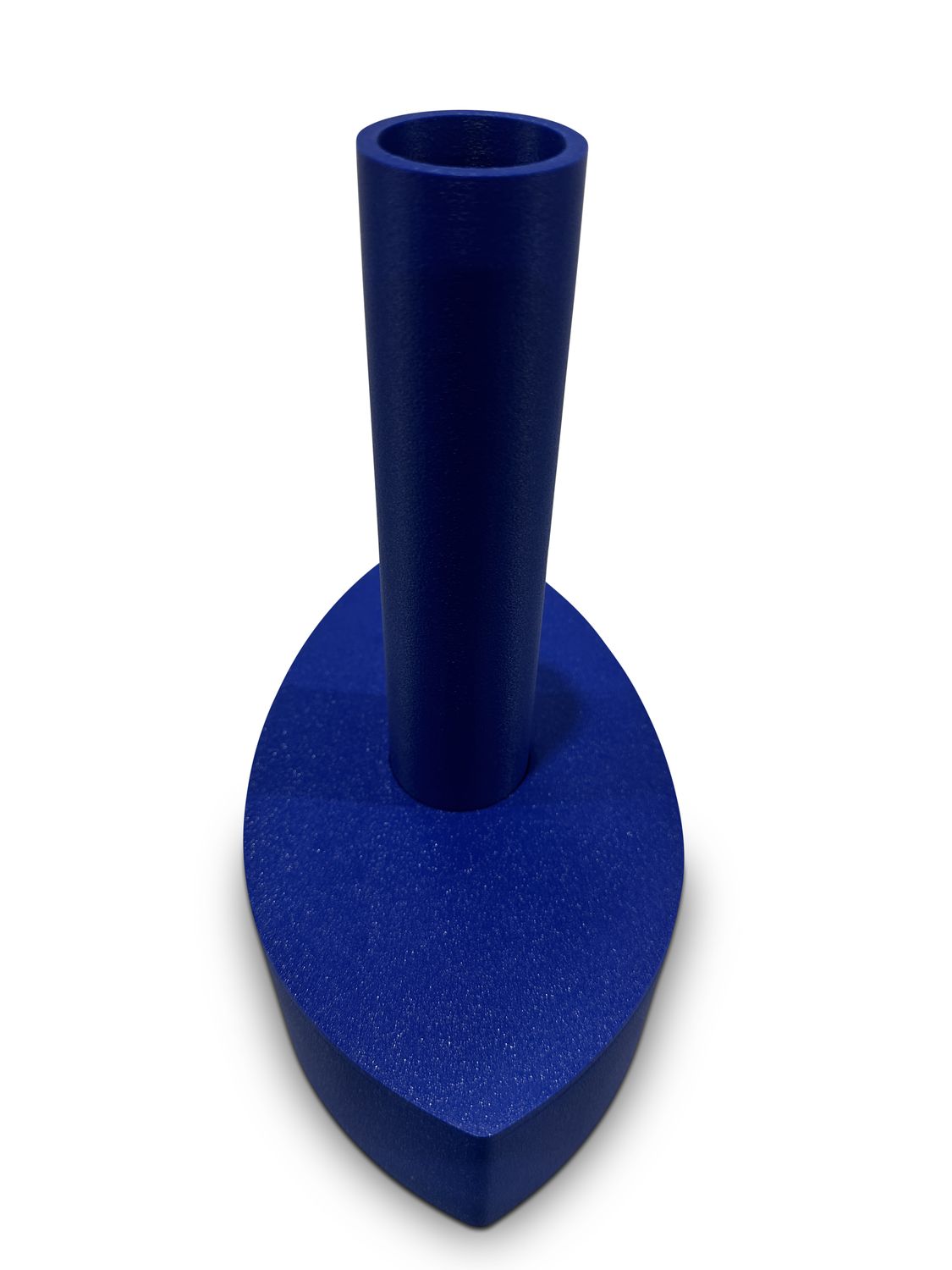

The sleeve is made from high-quality ABS plastic — tough, corrosion-resistant, and engineered for long-term marine performance. It ships in two parts: the main body and a stem. The stem is cut to size during installation and easily relocated into the main body, allowing the sleeve to be customised to your exact faring depth.

The main body is intentionally sized 2mm oversize, leaving a uniform gap around the transducer that's filled with marine adhesive sealant during install. The result is a watertight, corrosion-resistant bond that holds up over the long haul.

Whether you're a commercial boat builder, a recreational builder, or anyone manufacturing an aluminum faring block for the Garmin PS70, this sleeve is the solution for protecting your investment and ensuring the install lasts.

Why ProTek?

Stops galvanic corrosion at the source. Fully encapsulates the stainless steel transducer, eliminating direct contact with the aluminium faring.

Two-piece, customisable fit. Stem cuts to size on install, so the sleeve works across different faring depths without needing multiple SKUs.

Engineered 2mm sealing gap. Built-in clearance for marine adhesive sealant — a clean, watertight install every time.

Built for builders. Designed for commercial and recreational boat builders fabricating aluminium farings for the Garmin PS70.

Key Details

Material: High-quality ABS plastic

Design: Two-piece — main body + cut-to-size stem

Sealing gap: 2mm around the transducer (for marine adhesive)

Compatibility: Garmin PS70 thru-hull transducer in aluminium farings

Application: Commercial and recreational boat building

Sealant: Marine adhesive (sold separately)

Overview

Garmin PS70 Insulator Sleeve

When installing the stainless steel Garmin PS70 through-hull transducer into an aluminum faring, galvanic corrosion is a serious concern. Two dissimilar metals in constant contact, in a marine environment, will eventually break each other down — damaging both the transducer and the faring block.

The PROTEK PS70 Transducer Insulator Sleeve is the fix. A precision-engineered barrier that fully encapsulates the top and sides of the PS70, eliminating direct contact between the stainless steel and the aluminum and stopping galvanic corrosion at the source.

The sleeve is made from high-quality ABS plastic — tough, corrosion-resistant, and engineered for long-term marine performance. It ships in two parts: the main body and a stem. The stem is cut to size during installation and easily relocated into the main body, allowing the sleeve to be customised to your exact faring depth.

The main body is intentionally sized 2mm oversize, leaving a uniform gap around the transducer that's filled with marine adhesive sealant during install. The result is a watertight, corrosion-resistant bond that holds up over the long haul.

Whether you're a commercial boat builder, a recreational builder, or anyone manufacturing an aluminum faring block for the Garmin PS70, this sleeve is the solution for protecting your investment and ensuring the install lasts.
