ProTek Series

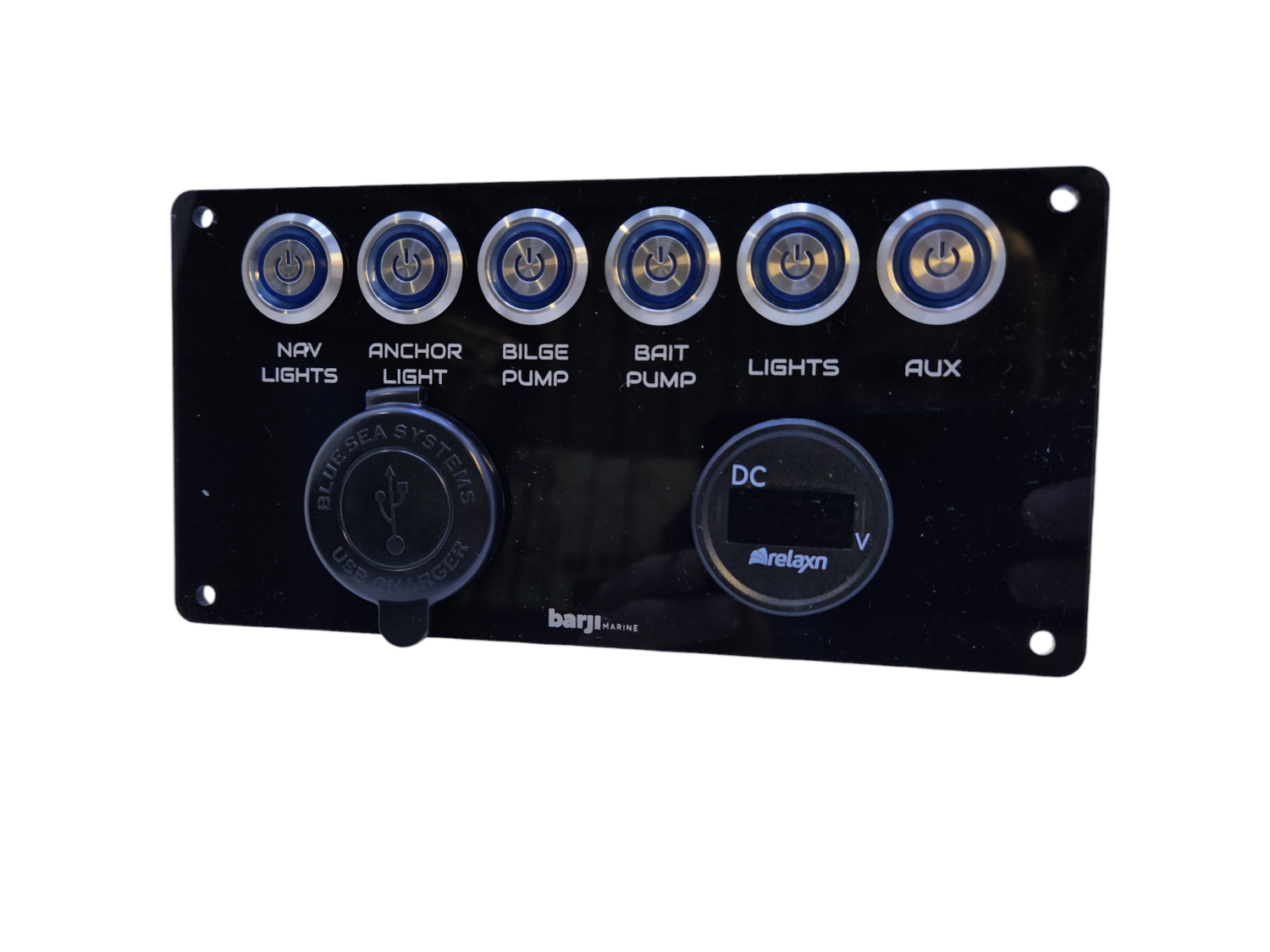

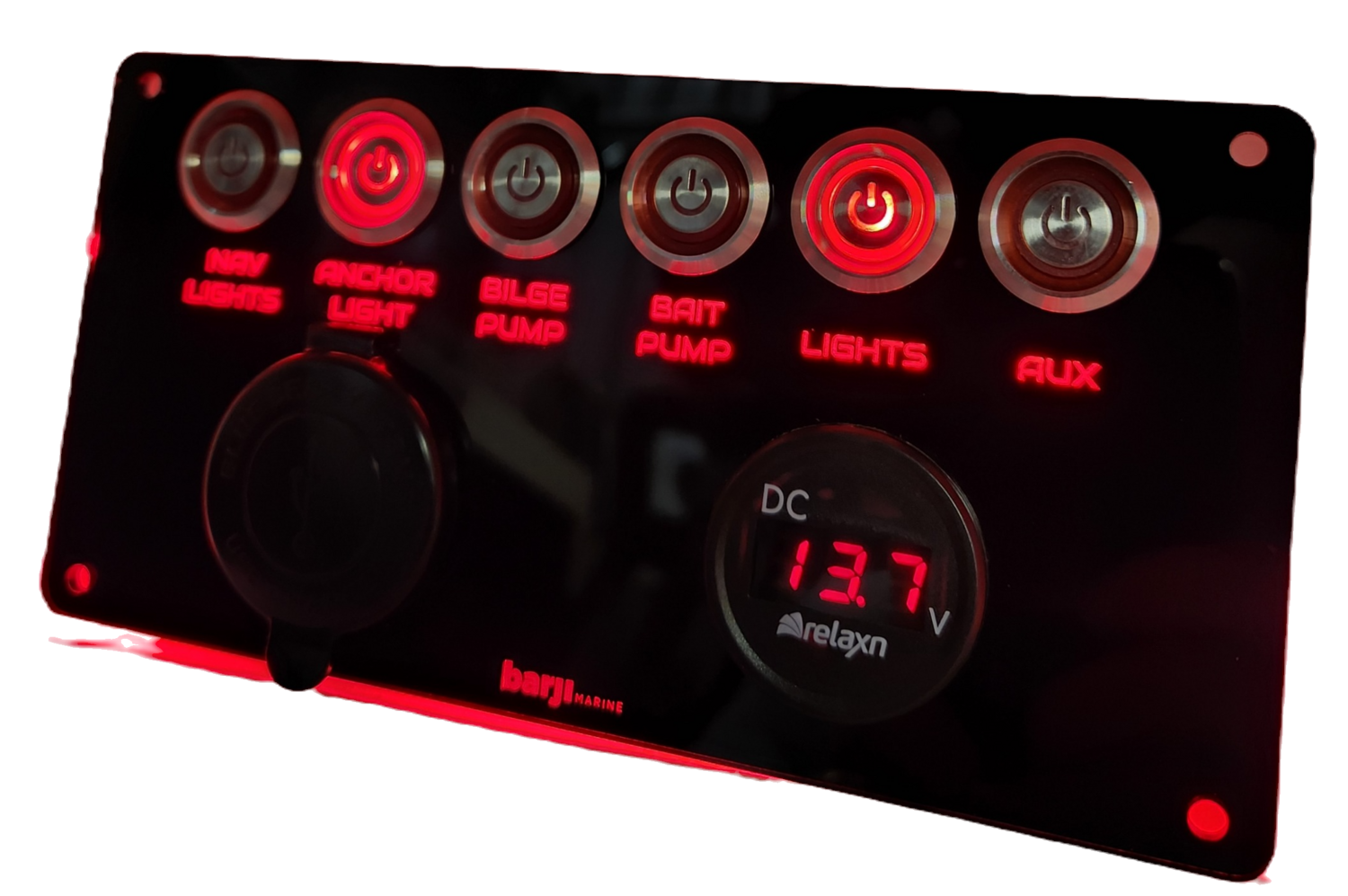

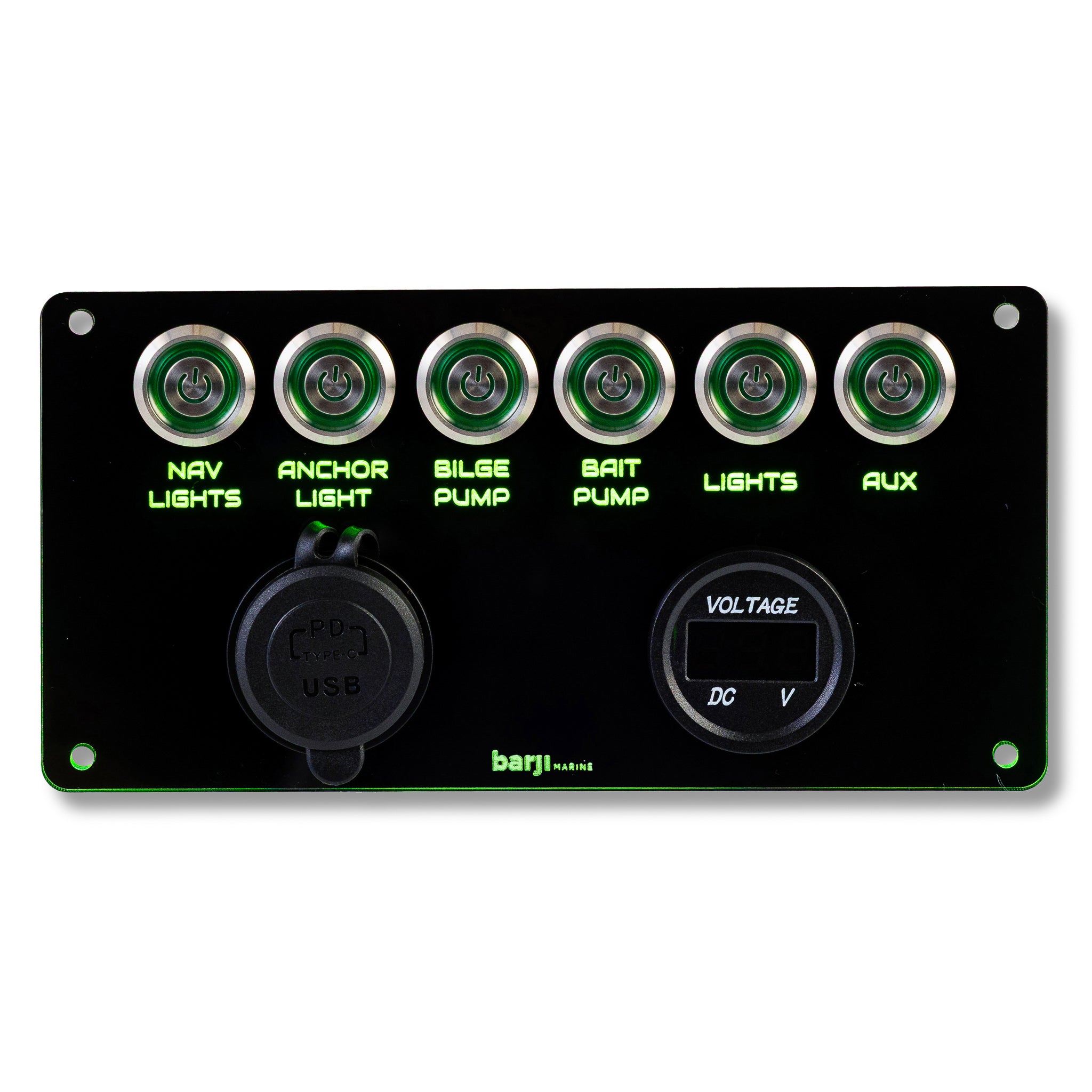

Pre-Built 6 way back-lit switch panel with Volt meter & USB Charger

Sale price$378.00 AUD

A 6-way backlit switch panel in gloss black, fitted with IP67 stainless steel push buttons rated to 20 amps. Pre-wired with a plug-in harness, hand made on the Central Coast and backed by a 24 month warranty.

In stock
Shipping

Please note - we ship Mondays, Wednesdays and Fridays, with a cut-off time of 12pm.

Pre-Built 6 way back-lit switch panel with Volt meter & USB Charger

Looking to upgrade your boat's helm? Our 6-way 'pre-built' backlit switch panel is fitted with high-quality, 20 amp, IP67 rated stainless steel push button switches — built to stand up to the harsh marine environment.

Available in gloss black with your choice of blue or red LED backlighting, the panel is both stylish and functional. The six individual switches give you control over all of your boat's electrical needs.

Installation is a breeze with the included installation instructions, cut-out template, and self-tapping screws. Plus, each switch is pre-wired with a plug-in wiring harness, making installation even easier.

Our panels are all hand made on the Central Coast of New South Wales, Australia. Every panel is built to the highest quality standard available, and we're so confident in that quality each one comes with a 24 month warranty.

* Please see our warranty conditions here

Why ProTek?

Built tough for the marine environment. IP67 stainless steel push buttons rated to 20 amps — sealed against water, salt and dust.

Plug-in wiring harness. Each switch comes with plug and 100cm 4-wire harness, so the install doesn't turn into a wiring job.

Hand made on the Central Coast. Built locally to a consistent quality standard, not pulled off a shelf overseas.

24 month warranty. Backed by the team that builds them — because they know they last.

Upgrade Your Setup Today

Watch it installed on our Weekly Workshop Walkthrough series — head to our YouTube channel for the full episode.

Key Details

Panel Sizes

  • Landscape 6-way — 115mm wide × 95mm high
  • Portrait 6-way — 73mm wide × 180mm high
  • Landscape 6-way with volt meter & USB charger — 180mm wide × 90mm high

Standard Labels
Nav Lights · Anchor Light · Bilge Pump · Bait Pump · Lights · Aux

Switches

  • Waterproof rating: IP67
  • Current limit: 20 amps @ 12V
  • Voltage: 12V
  • Construction: 316 stainless steel main body
  • Labelling: power icon to front
  • Connections: separate plug to rear with 100cm, 4-wire harness (no fusing)

Backlighting

  • Aux backlighting panel to rear with efficient LED light strip
  • Switch labelling printed to rear of backlighting panel for quick ID at install
  • Simple removal design for future serviceability

Acrylic Panel Facia

  • 3mm thick, high gloss black, UV-stable acrylic
  • High-definition laser engraving, precision laser cut to size
  • Engraving to rear of panel for a smooth front surface (no felt engraving from the front)

In the Box

  • Detailed installation instructions with wiring diagram
  • Laser-cut cut-out template
  • 316 stainless steel self-tapping screws, painted black
  • Free Barji Marine gift

All switch panels are sent via registered Australia Post. Please allow 3-5 'working' days for standard tracked delivery and 1-3 'working' days for Express post. Your tracking information will come via email and text.

* Please see our warranty conditions here

Pre-Built 6 way back-lit switch panel with Volt meter & USB Charger

Looking to upgrade your boat's helm? Our 6-way 'pre-built' backlit switch panel is fitted with high-quality, 20 amp, IP67 rated stainless steel push button switches — built to stand up to the harsh marine environment.

Available in gloss black with your choice of blue or red LED backlighting, the panel is both stylish and functional. The six individual switches give you control over all of your boat's electrical needs.

Installation is a breeze with the included installation instructions, cut-out template, and self-tapping screws. Plus, each switch is pre-wired with a plug-in wiring harness, making installation even easier.

Our panels are all hand made on the Central Coast of New South Wales, Australia. Every panel is built to the highest quality standard available, and we're so confident in that quality each one comes with a 24 month warranty.

* Please see our warranty conditions here

Why ProTek?

Built tough for the marine environment. IP67 stainless steel push buttons rated to 20 amps — sealed against water, salt and dust.

Plug-in wiring harness. Each switch comes with plug and 100cm 4-wire harness, so the install doesn't turn into a wiring job.

Hand made on the Central Coast. Built locally to a consistent quality standard, not pulled off a shelf overseas.

24 month warranty. Backed by the team that builds them — because they know they last.

Watch it installed on our Weekly Workshop Walkthrough series — head to our YouTube channel for the full episode.

Key Details

Panel Sizes

  • Landscape 6-way — 115mm wide × 95mm high
  • Portrait 6-way — 73mm wide × 180mm high
  • Landscape 6-way with volt meter & USB charger — 180mm wide × 90mm high

Standard Labels
Nav Lights · Anchor Light · Bilge Pump · Bait Pump · Lights · Aux

Switches

  • Waterproof rating: IP67
  • Current limit: 20 amps @ 12V
  • Voltage: 12V
  • Construction: 316 stainless steel main body
  • Labelling: power icon to front
  • Connections: separate plug to rear with 100cm, 4-wire harness (no fusing)

Backlighting

  • Aux backlighting panel to rear with efficient LED light strip
  • Switch labelling printed to rear of backlighting panel for quick ID at install
  • Simple removal design for future serviceability

Acrylic Panel Facia

  • 3mm thick, high gloss black, UV-stable acrylic
  • High-definition laser engraving, precision laser cut to size
  • Engraving to rear of panel for a smooth front surface (no felt engraving from the front)

In the Box

  • Detailed installation instructions with wiring diagram
  • Laser-cut cut-out template
  • 316 stainless steel self-tapping screws, painted black
  • Free Barji Marine gift
,
